Description

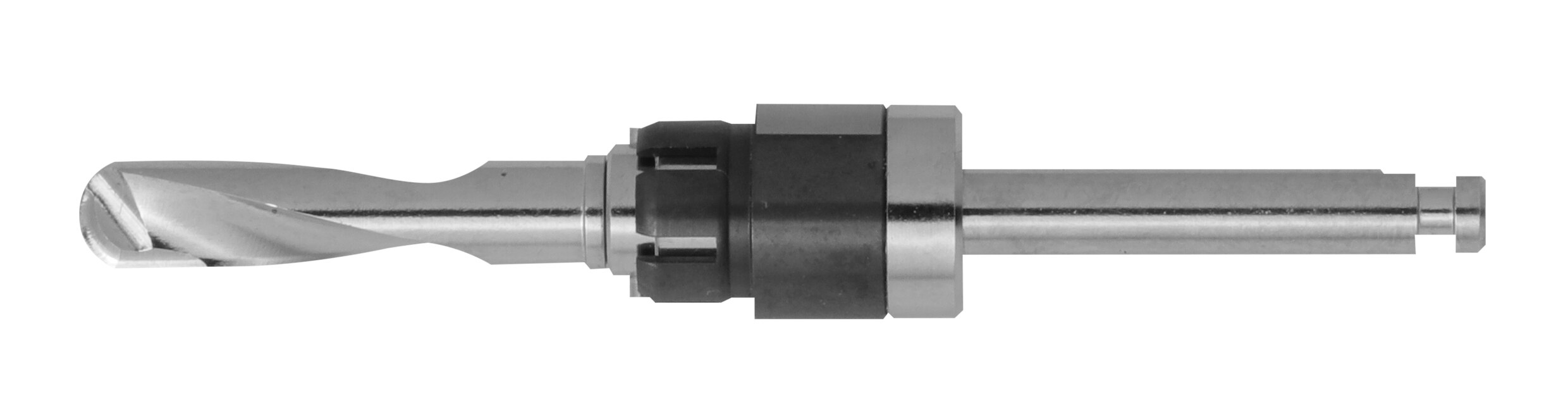

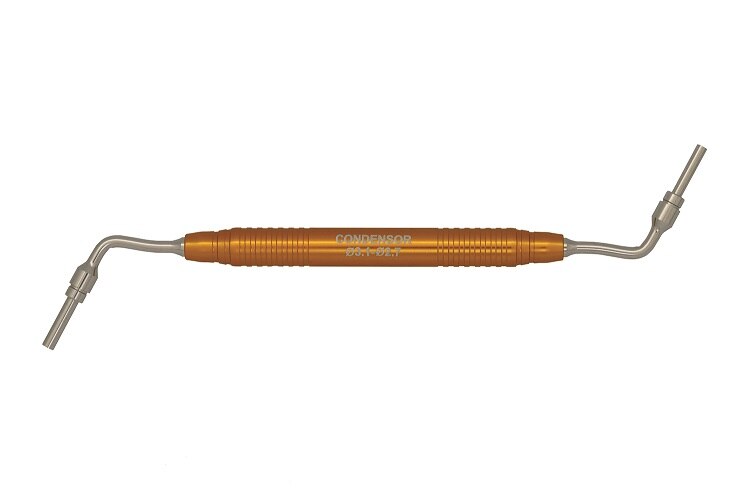

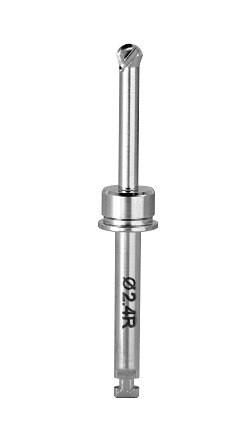

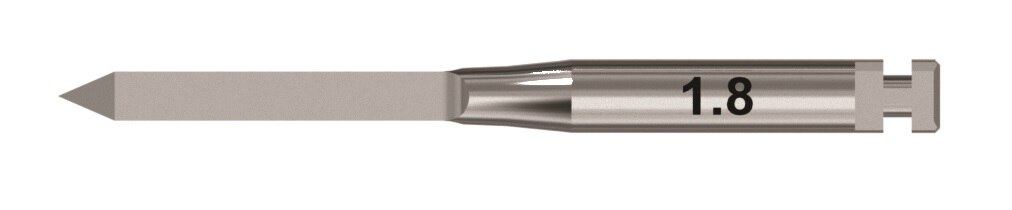

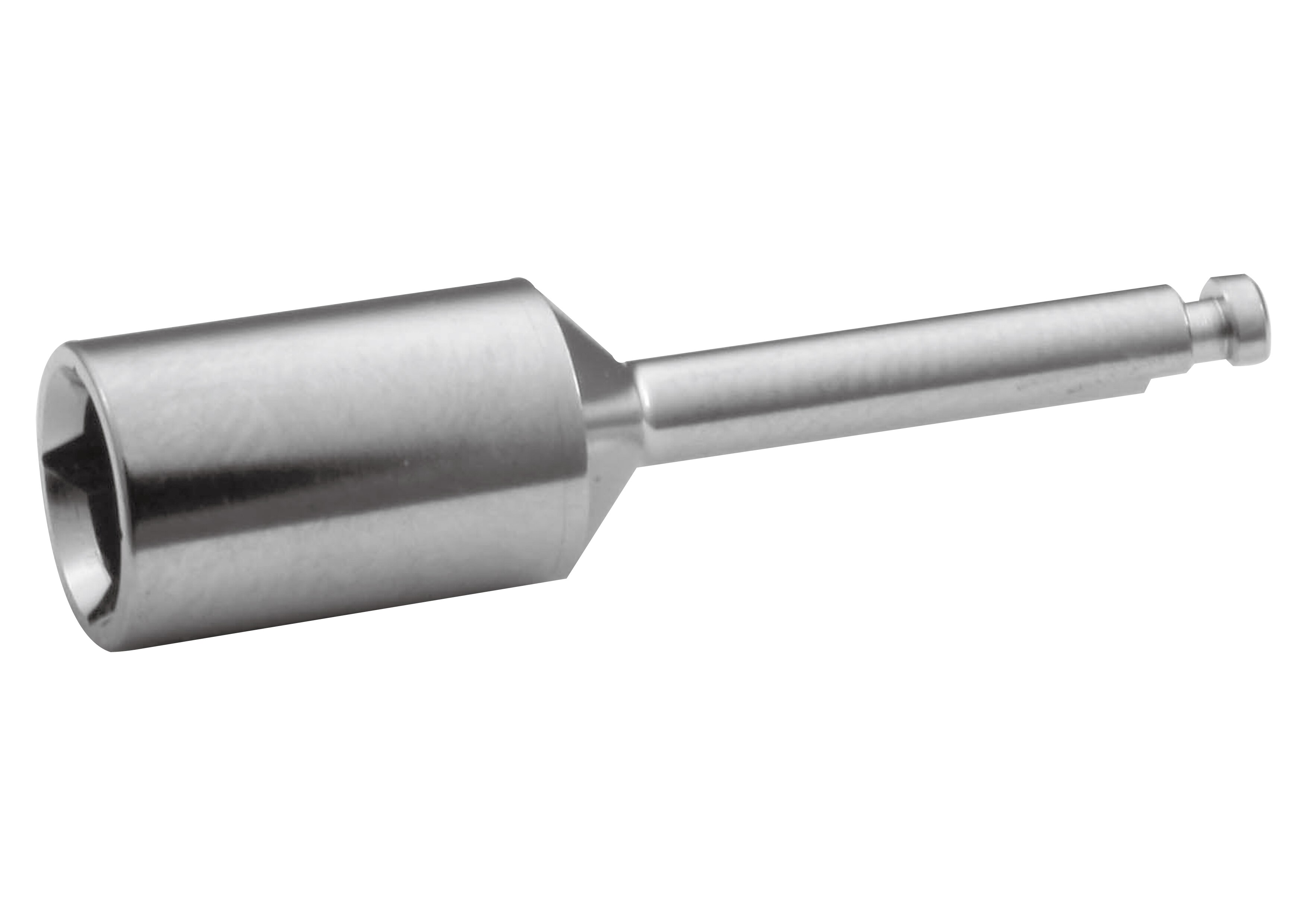

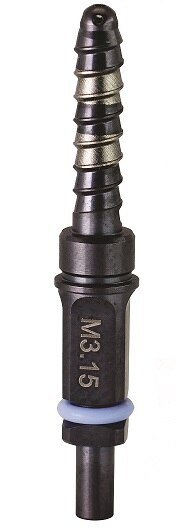

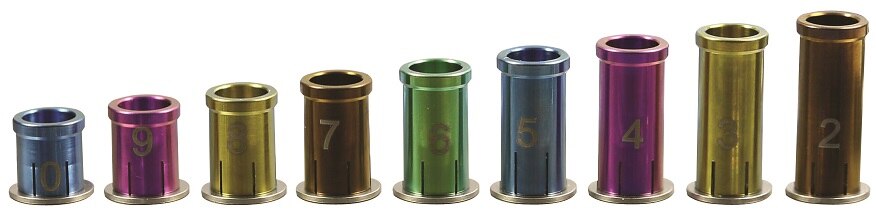

OCAKIT •Everyone gets the same result in operation as the drill stops by itself when it touches the sinus membrane. •Riskless in the matter of membrane-tear as the membrane is lifted by using hydraulic pressure. 1) Pilot Drill ø1.8 •To mark a position of an implant after confirmation of X-ray 2)Stopper (2mm ~ 10mm) •Control depth 3) A.I. Drill •Drill stops automatically when the drill touches sinus membrane (by 1,200rpm) 4) Cannon Drill ø2.4 •Initial drill to access the sinus before the use of A.I. drill. 5) Cannon Drill ø3.2 •Used for expanding a hole size. •Can be used with a stopper. 6) Aqua tap •Used for injecting a saline solution or contrast medium into the perforated maxillary sinus. 3.15S 3.15 3.5 Diameter Ø3.15 Ø3.15 Ø3.5 Length 28mm 33mm 33mm 7)Hand Adapter 8)Engine Adapter •Adapter for connecting Aquatap to the implant handpiece. 9)Hand Wrench 10) Sensor Gauge •To check perforation of the sinus membrane by using compression of spring 11) Bone Condensor •Condensing bone material into the maxillary sinus 12) Bone Carrier •Carry bone material to the maxillary sinus
